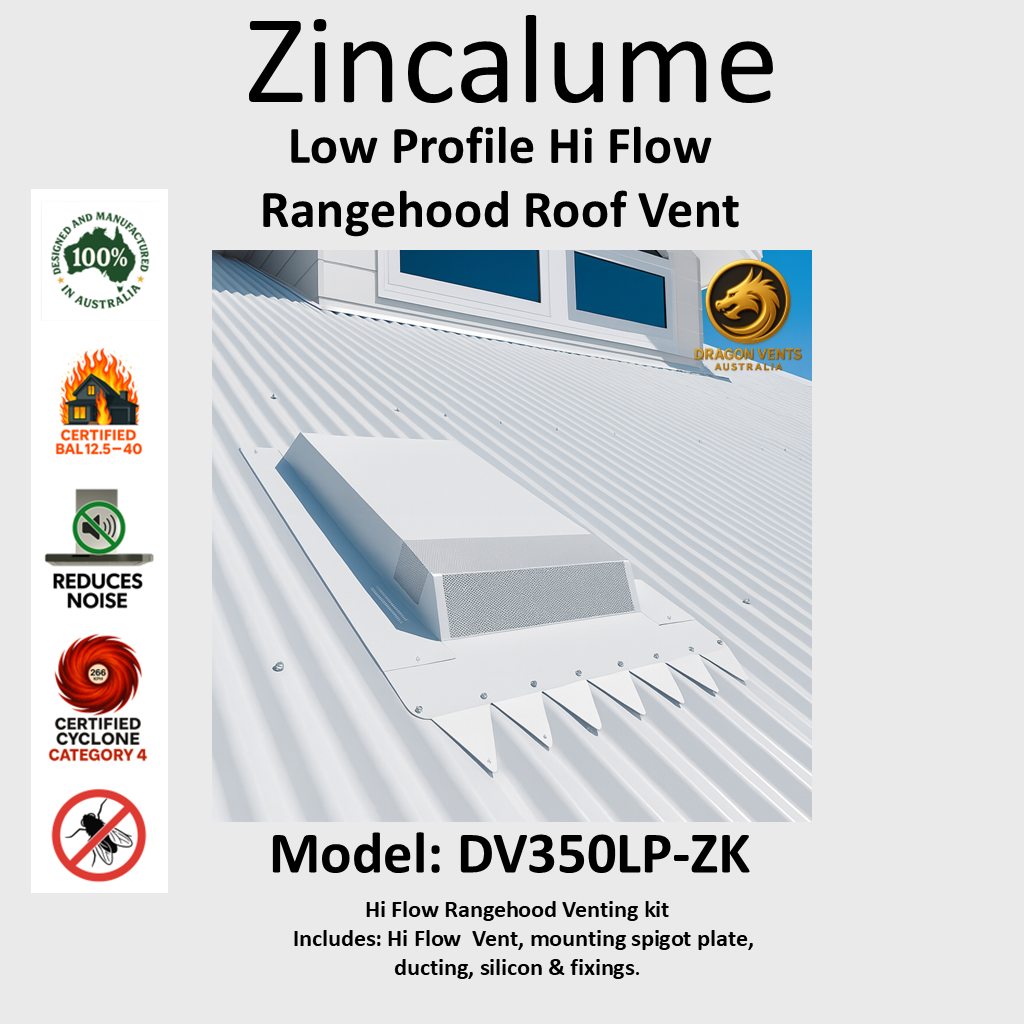

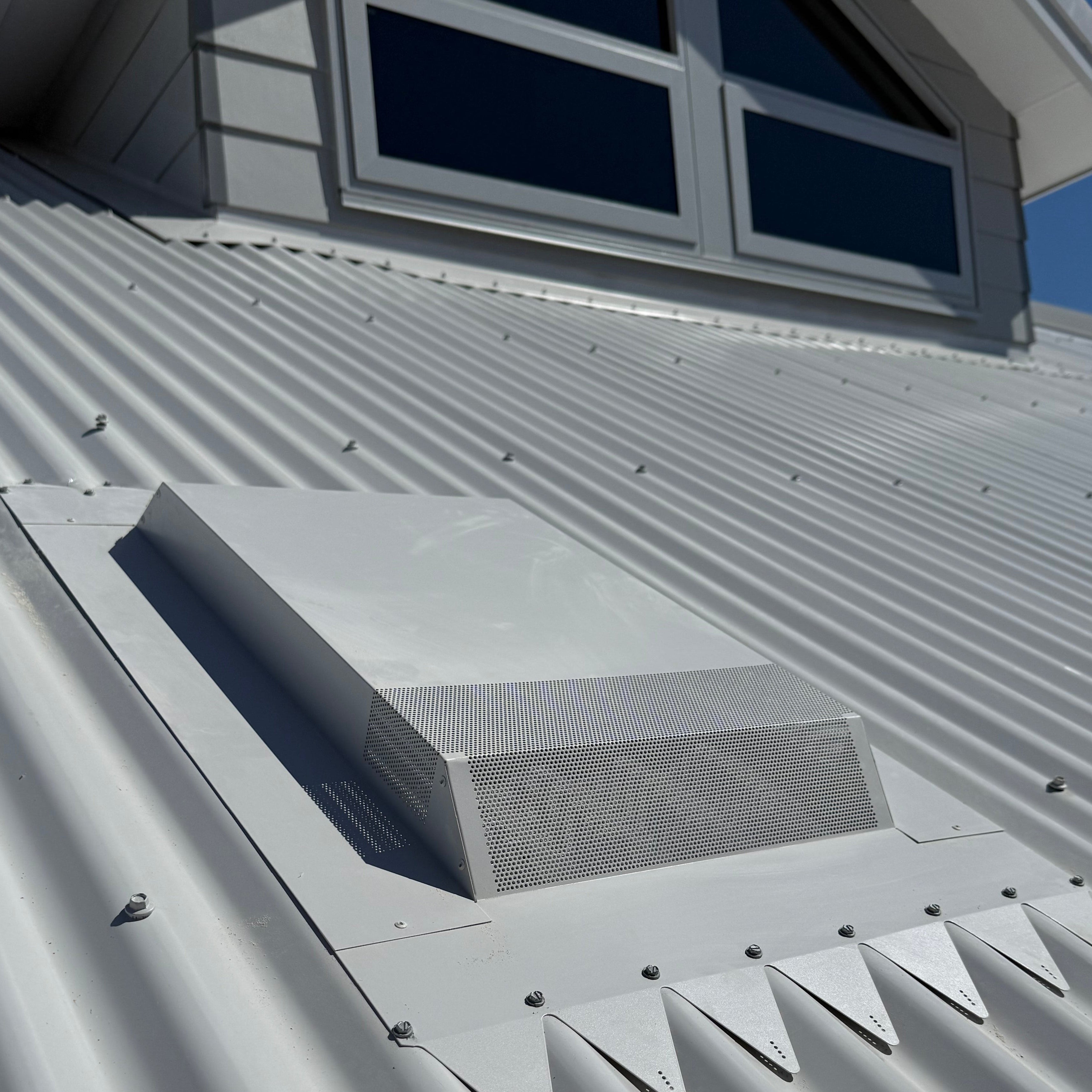

Low Profile Range Hood Roof Vent

Engineered for the new NNC condensation management regulations 2025.

The DV-350LP is a premium Rangehood/Bathroom exhaust fan venting solution designed for superior airflow, durability, and safety. If building a new house or you need enhanced rangehood performance Dragon Vents Australia delivers industry-leading technology with bushfire-safe, high-flow, and weatherproof capabilities.

Features

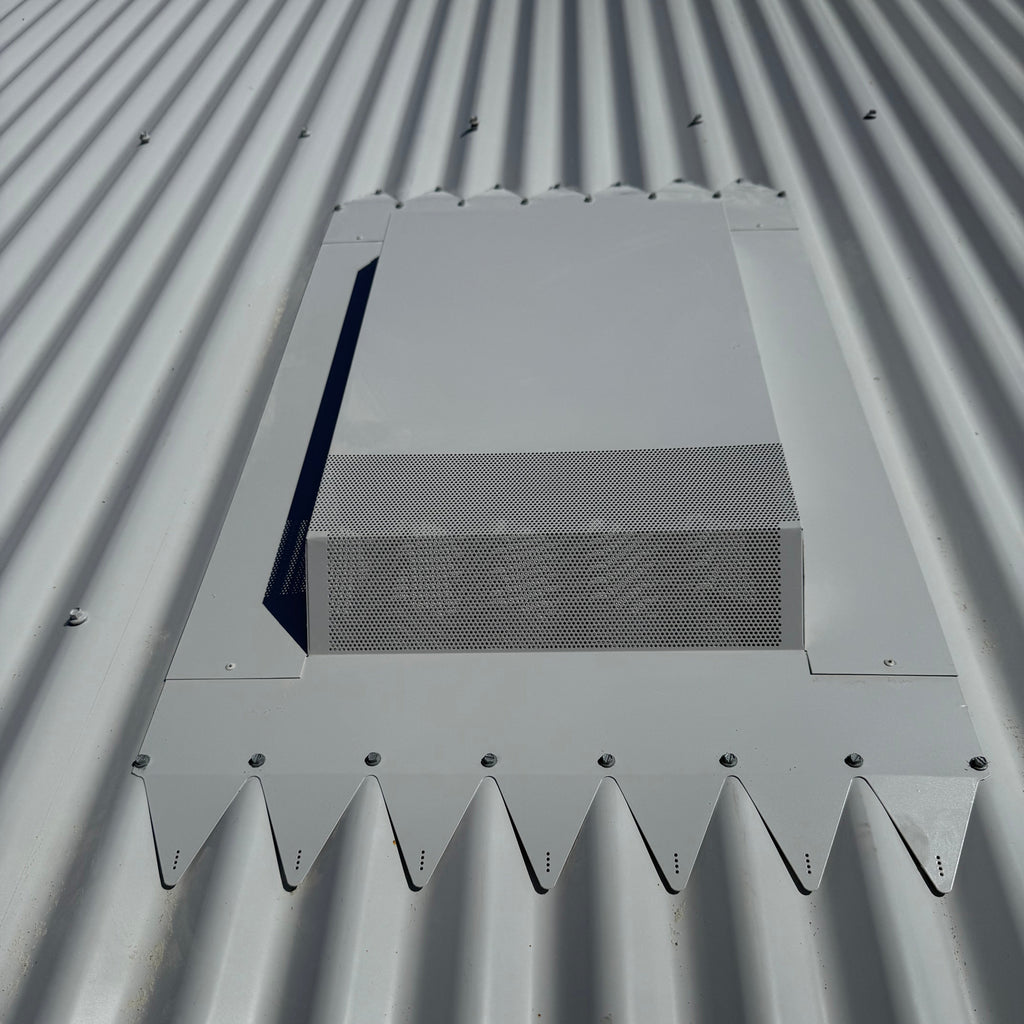

✅ Low profile Design. – An Australian first, standing at just 60mm high, the DV-350LP features a new angled ducting spigot—delivering maximum performance for both rangehoods and bathroom exhaust systems.

✅ Innovative Solar Integration- Thanks to its unique Patented design, the DV-350LP venting system now allows for solar panels to be installed directly over the top. This integration not only enhances solar efficiency by maximizing sun exposure but also creates sleek, appealing roof lines that elevate the overall aesthetic of Australian buildings.

✅ Bushfire Resilient – Engineered to protect your home from bushfire ember attacks, the DV-350LP effectively blocks dangerous embers from penetrating your space, providing a vital safeguard for your family's peace of mind.

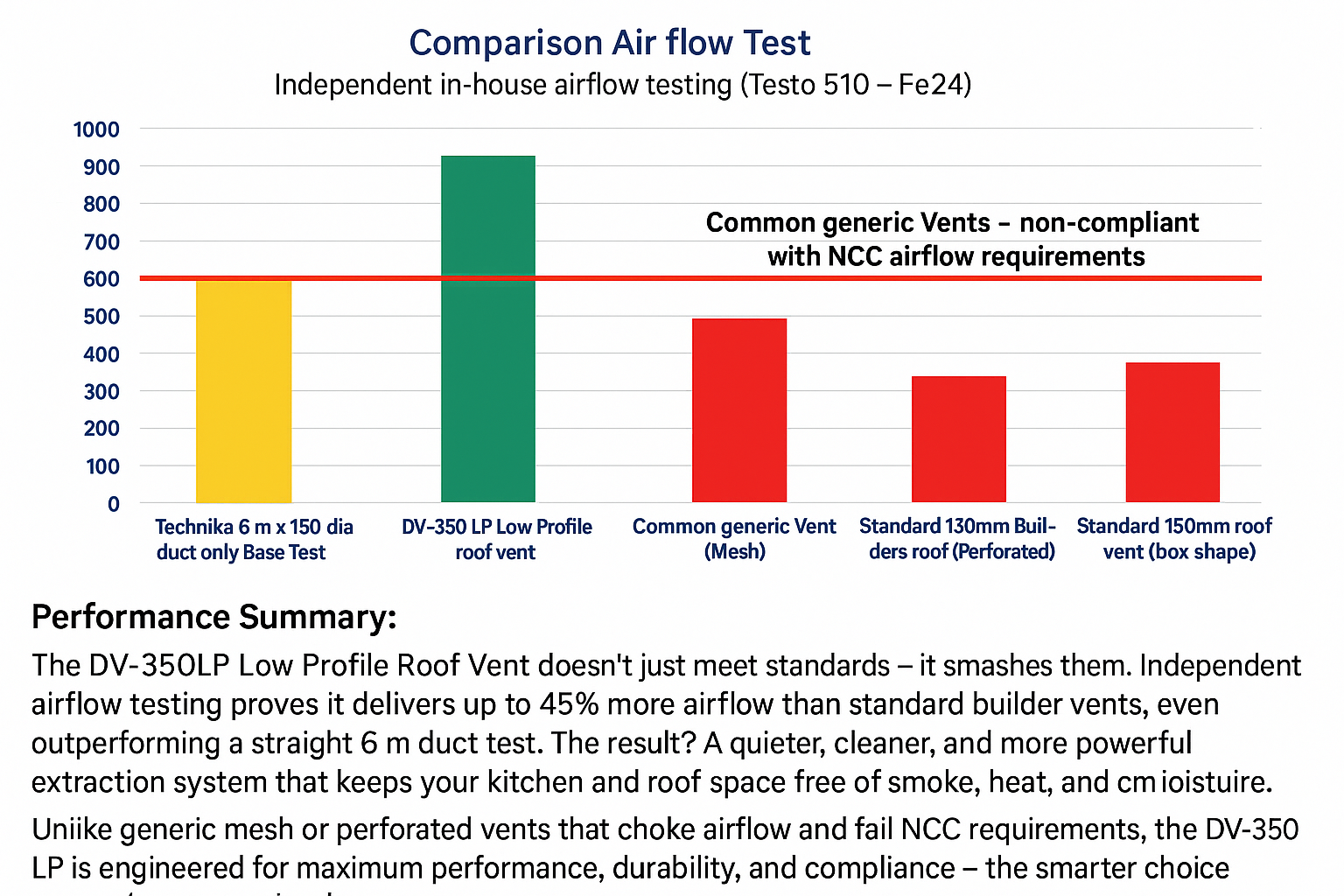

✅ Non-Restrictive Airflow –Tested to deliver up to 1030 m³/h, the DV-350LP effectively vents cooking  effluents and harmful carbon monoxide, ensuring a safe and healthy environment for your family.
✅ Weatherproof Construction – Engineered with a fully sealed design, the DV-350LP is impervious to harsh weather conditions, ensuring reliable performance all year round.

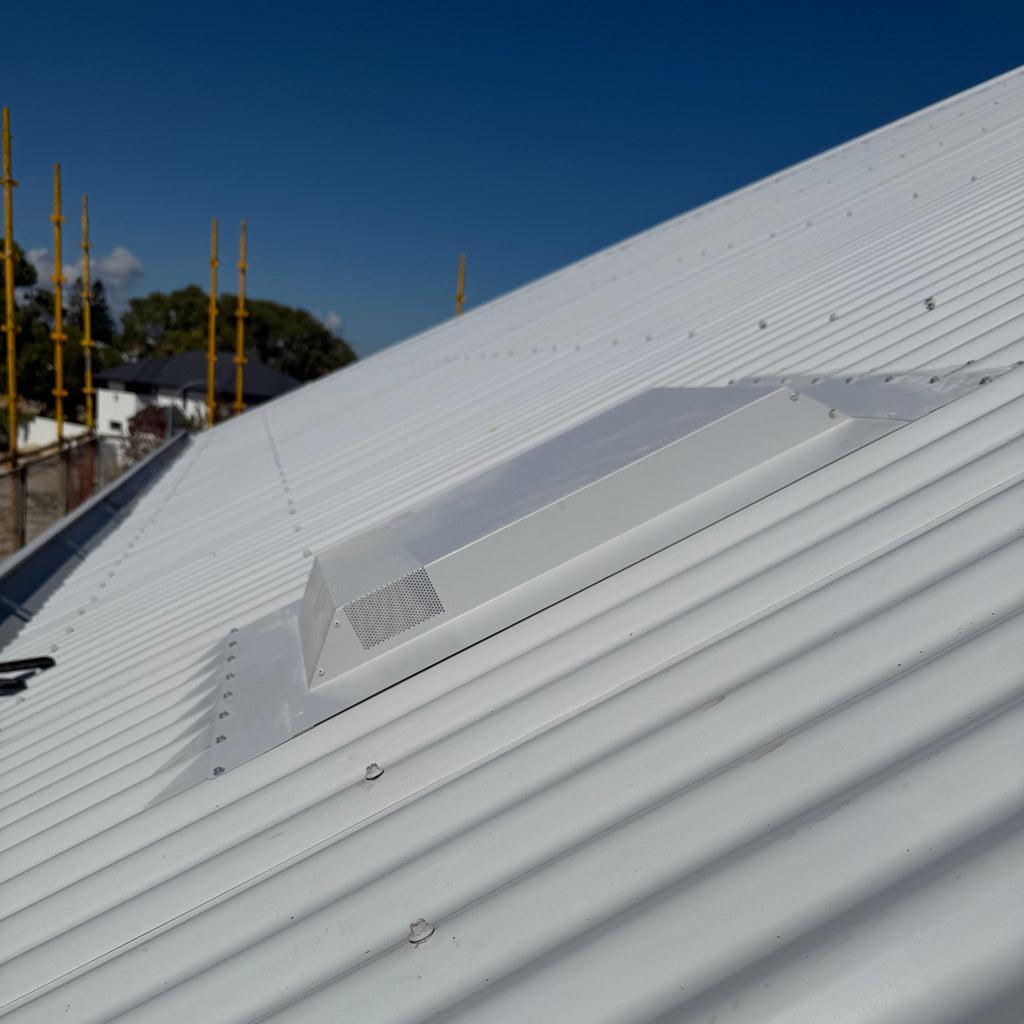

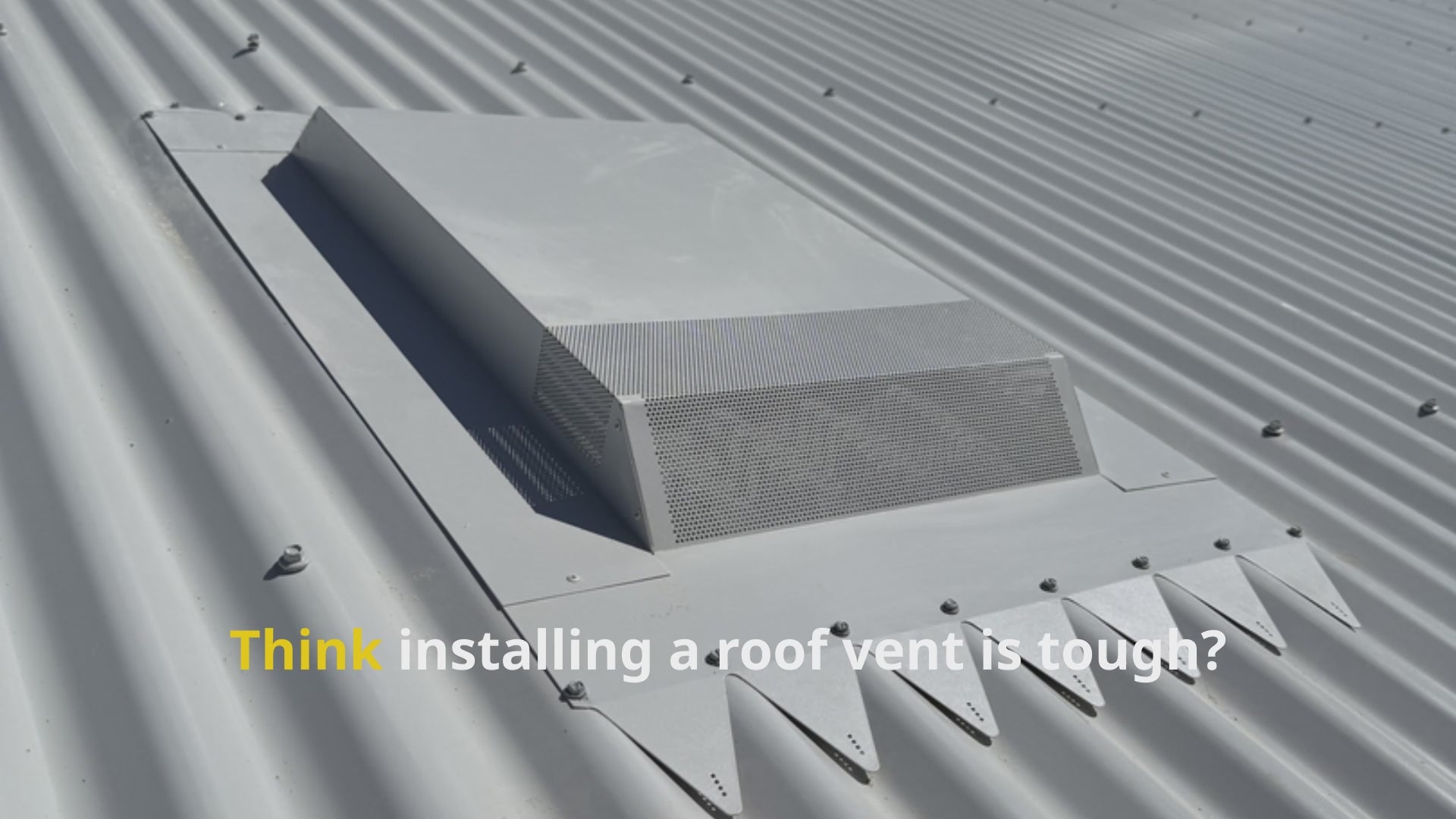

✅ Easy Installation – Designed  to integrate seamlessly with all tin roof profiles, the DV-350LP ensures an effortless and secure installation process, delivering lasting performance and peace of mind.
✅ Effective pest prevention –Designed to stop flies, other vermin—ensuring your home is clean and safe.

✅ Versatile Applications – Ideal for the ventilation of all brands of  kitchen rangehoods/bathroom exhaust systems.

  Material Specifications

Ø  DV-350LP: 0.55mm Colorbond  Steel with 1.99mm perforated exhaust outlet.

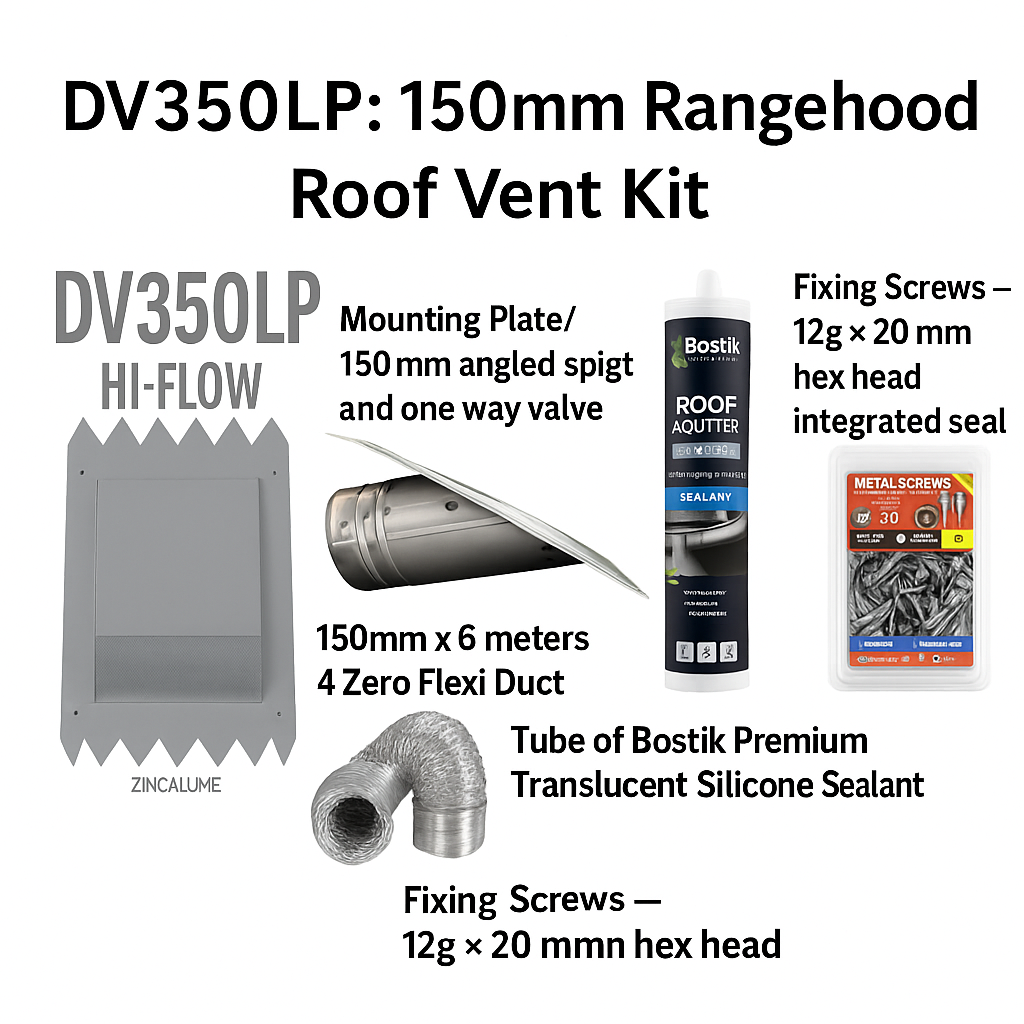

Ø  Duct mounting plate: 0.4mm Zincalume finger plate with angled 150mm spigot and 150mm one way valve.

Ø  Housing Dimensions: 800mm (L) x 540mm (W) x 60mm (H)

Ø  Heavy-Duty Fixings: Class 4 Self-Drilling Hex Head screws with neoprene seals.

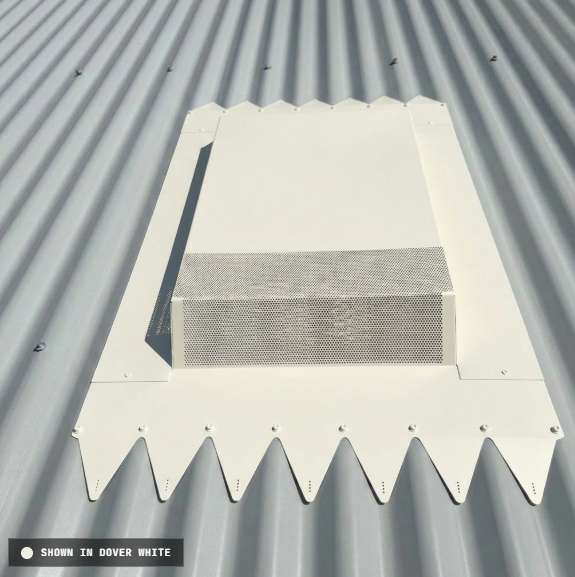

Ø  Available Colours: Woodland Grey |  Monument | Shale Grey | Surf Mist | Dover White |  Zincalume

Applications

🔹 Rangehood/bathroom exhaust  Roof Venting

Designed for installation above kitchen/bathroom exhaust systems, ensuring optimal airflow and smoke extraction. The mounted spigot plate/one way valve/ ducting  allows seamless integration on all brands of ducted ventilation systems.

• 34cmx34cmx34cm Spigot Box  3 kg     150mm mounting spigots.
• 100cmx60cmx340cm (4 vents) 8 kg       DV-350LP Vents.
